Mechanical
Height: 75"
Base diameter: 28"
Proprietary mechanism locks the unit in place without the need to lock casters
Electrical
Plugs into a regular three prong outlet (15 Amps branch)
GFCI protection
Silent fan
Retractable power cable stores in the base
Controls
Most features displayed locally as well as via remote wi-fi devices
Touch screen local controls also displays operating information, help and settings
Password protected disables unauthorized operation
Local delayed operation with audible alarm allows personnel to start disinfecting cycle and leave the
room prior to radiation voice announcements
Accumulated hours of operation counter
Replace lamp alarm
Bad lamp(s) alarm
Built-in web server
Built-in SSH server (secure FTP)
Data logging capabilities
Smart electronic ballasts offer years of maintenance-free service
Remote wireless UV sensor feedback allows monitoring the amount of UV energy measurement at
point of reading (sensor(s) location)
Proprietary motion sensors disables operation upon detection of movement
User-programmable cycles can be stored in non-volatile memory
Lamps
6 x UV-C 50" lamps
Shatterproof lamps optional

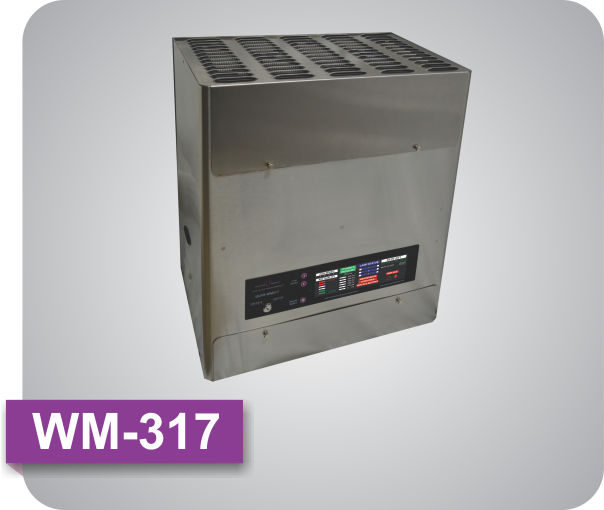

Part Number: UUVS-WM-317Input:120/220V, 50/60Hz
WM-317TM FeaturesStainless steel or optional powder coated housingAdjustable fan speedPressure sensingAir quality sensingH13, high quality HEPA filterOptional U15, ≥99.9995%, ≤0.12μm ULPA filterActivated carbon pre-filterLong-life germicidal UV lampsMultiple safety featuresLow noise performanceProfessional appearanceAirflow rate 450CFMColor LCD featuring:Fan speed indicationAir quality indicationChamber pressureLamp statusDays left counter for replacement partsVisual and audible alarmsDimensions
20.5" L x 19" H x 12" D (52.07cm X 48.26cm x 30.48cm)
